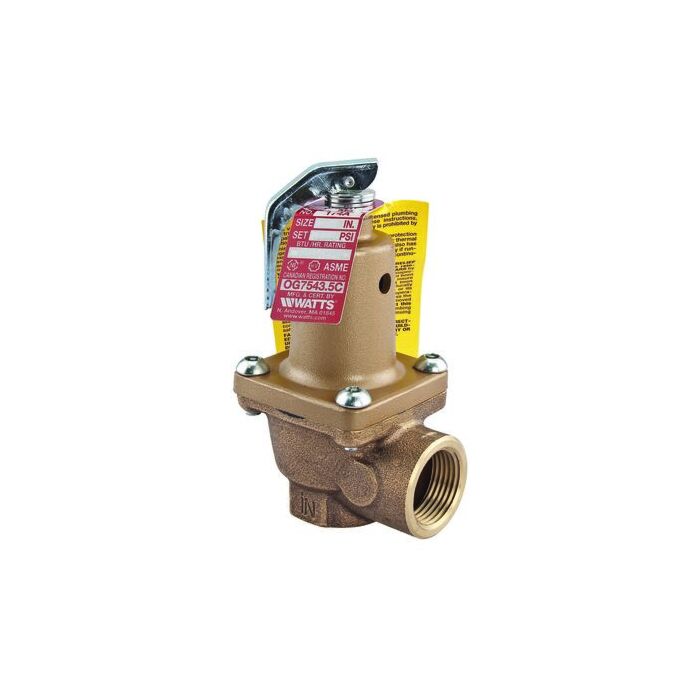

3/4" x 3/4", FPT x FPT, 38 PSI, Bronze, Spring Loaded, Automatic Reseating, Boiler Pressure Relief Valve

SKU

0274513

UPC:

098268013092

Call for Availability

3/4" x 3/4", FPT x FPT, 38 PSI, Bronze, Spring Loaded, Automatic Reseating, Boiler Pressure Relief Valve

Product Description

More Information
Seat Located above Drain So Water Cannot be Trapped and Sediment Can Not Foul Seat; Non-Mechanical Seat-To-Disc Alignment will Not Stick or Freeze; Water Seal of High Temperature Resisting Material Isolates Spring Working Parts from Water During Relief; BAA Compliant	Boiler Pressure Relief Valve; Type Spring Loaded, Automatic Reseating, Pressure; Inlet Size 3/4 Inch; Outlet Size 3/4 Inch; End Connection Female Threaded x Female Threaded; Body Material Bronze; Spring Material Stainless Steel; Set Pressure Range 30 to 150 PSI; Temperature Rating 250 Deg F; Pressure Rating 38 PSI; Inclusions/Features Non-Metallic Disc-To-Metal Seating, Test Lever; Application Hot Water Heating and Domestic Supply Boiler; Applicable Standard ASME, NB, HV, MIL-V-18634B; Size 2-3/4 Inch Length x 4-1/2 Inch Height; Pressure Steam Discharge Capacity 950000 BTU/Hour

Specifications
Body Material	Bronze
End Connection	Female Threaded x Female Threaded
Individual Item Weight	1.200 Pound
Inlet Size	3/4 Inch
Manufacturer	Watts Water Technologies, Inc. (Watts)
Manufacturer Name	Watts Water Technologies, Inc. (Watts)
Manufacturer Part Number	0274513
Outlet Size	3/4 Inch
Pressure Rating	30 to 150 PSI
Series/Model	174A
Set Pressure Range	50 PSI
Spring Material	Stainless Steel
Temperature Rating	250 Deg F
UNSPSC	40141606
UPC	098268013092

More Information
Manufacturer Catalog Document	Manufacturer Installation/Operator Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
